125A, 3P, 50KA, MCCB (Susol - Adjustable) - LS

Part Nunber
TD160N FMU160 125A 3P EXP
In stock
Special Price ৳12,876.00 was ৳16,095.00
-
+
LS
Overview

Design for technical strong point: The Susol MCCB


Susol series MCCB is available forworld best breaking capacity up to 150kA, and MS is seal structure for hidden electricity arc. Susol product represents simultaneously simple and complicated design for using cut diamond motive to emphasis on the hardness of industrial product. And we applied the identity of product image by designing same concept MCCB and MS which is installed to cubicle. Susol series acquire the competitive power through getting the
picking up GD product and wining iF design award.

Susol MCCB series is Super Solution with Super performance, Super breaking capacity, Super optimum coordination, good life span and extensive applications.

Key benefits:

• Simplified installation, High Breaking Capacity, Optimized Protection

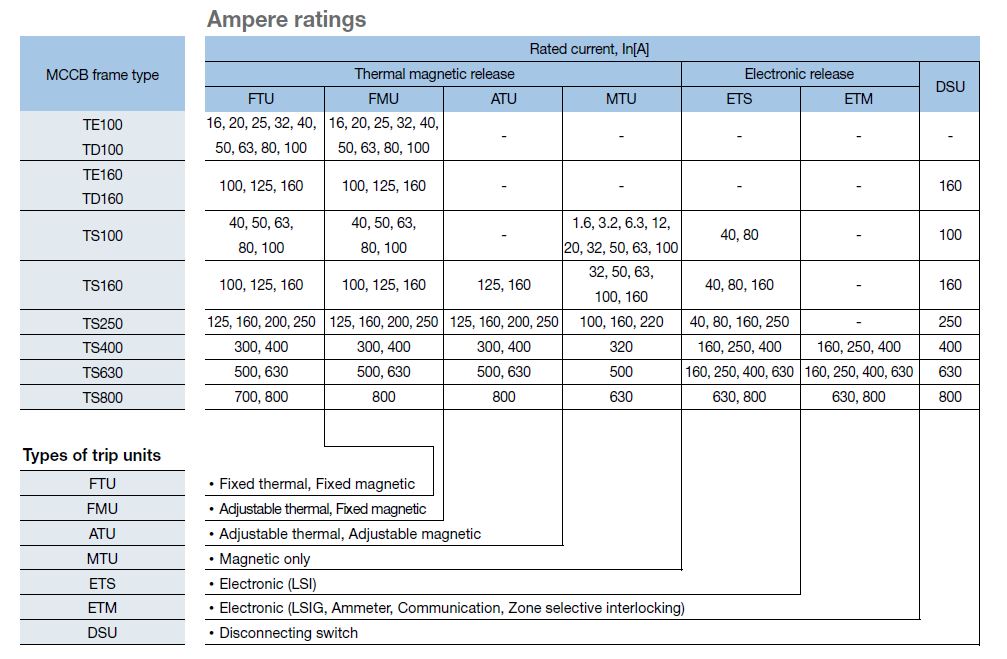

• Simplified 4 frame size (160/250/630/800AF from 16 to 800A)
• High breaking capacity Icu @ 415VAC: 50, 65, 85, 100, 150kA (Ics=100%Icu)
• Uimp = 8kV, Ui =750V, Ue = 690V

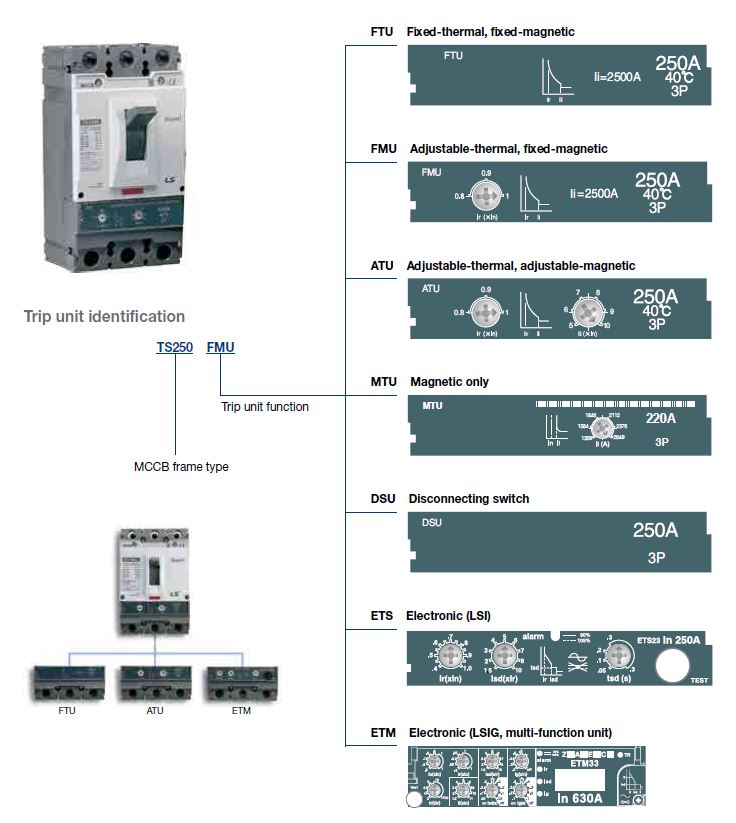

• Built in trip unit for TD series: FTU, FMU
• interchangeable trip units for TS series: FTU, FMU, ATU, MTU, ETS, ETM
• Disconnecting switch unit (DSU) is also available
• Communication: RS485(Modbus-RTU)
• Zone selective interlocking (ZSI)
• Ammeter function
• Earth fault protection
• Various connection & Plug-in mounting
• Providing a large offer of coordination tables
(Cascading, Discrimination, Type II coordination)
• Common use of electrical auxiliries like as AX, AL, SHT, UVT



More Information
Manufacturer LS
Ampere Rating (A) 125A
Breaker Type Adjustable
Number of Poles 3P
Breaking Capacity (Icu) 50KA
Part Nunber TD160N FMU160 125A 3P EXP
MRP BDT (Tk) ৳16,095.00
