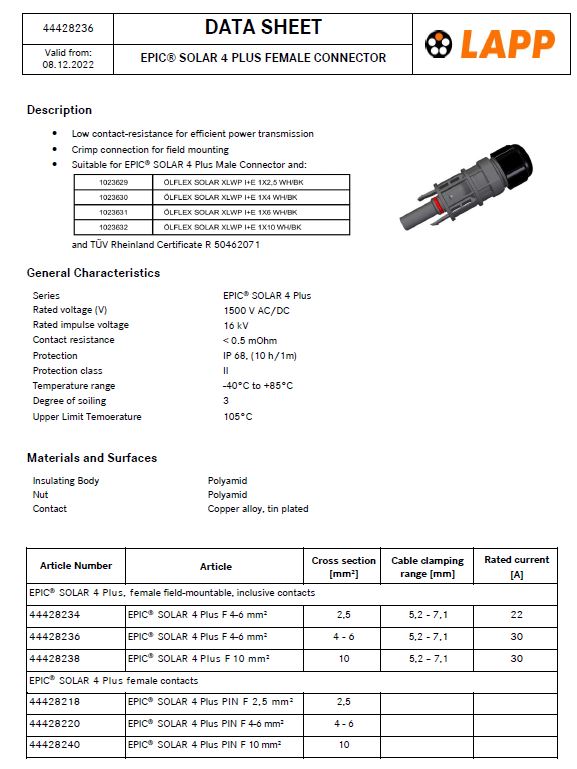

1500V EPIC SOLAR 4Plus 4mm2 Low contact- (Female), 4 mm connector system with double hook, inclusive contacts, OD of cable 5.2-7.1mm - (Europe) - Lapp
Part Nunber
44428236
In stock
৳250.00
Overview
Benefits
- Extremely weatherproof and durable thanks to the high-quality materials and solid construction.
- Compatible with other systems on the market.
- Low contact resistance at the contact point between the plug and socket for efficient energy transmission.
- Suitable for cable cross-sections up to 10 mm² to overcome long cable lengths.
- Crimp termination ensures a secure connection between the connector and the cable (to be disconnected with a tool).
- Double locking hooks secure the contact to the connector.
- With TUEV Rheinland testing mark.
Applications
- For use with EPIC® SOLAR 4PLUS M counter connectors (male insert).
- For modern, high-performance photovoltaic systems up to 1500 V.
- For the cabling of solar modules, inverters and stand-alone systems.
- Can be used with many ÖLFLEX® solar cables.
- Note: Plugged connections have protection class IP 68 (1 m for 10 h).
